Product:
510

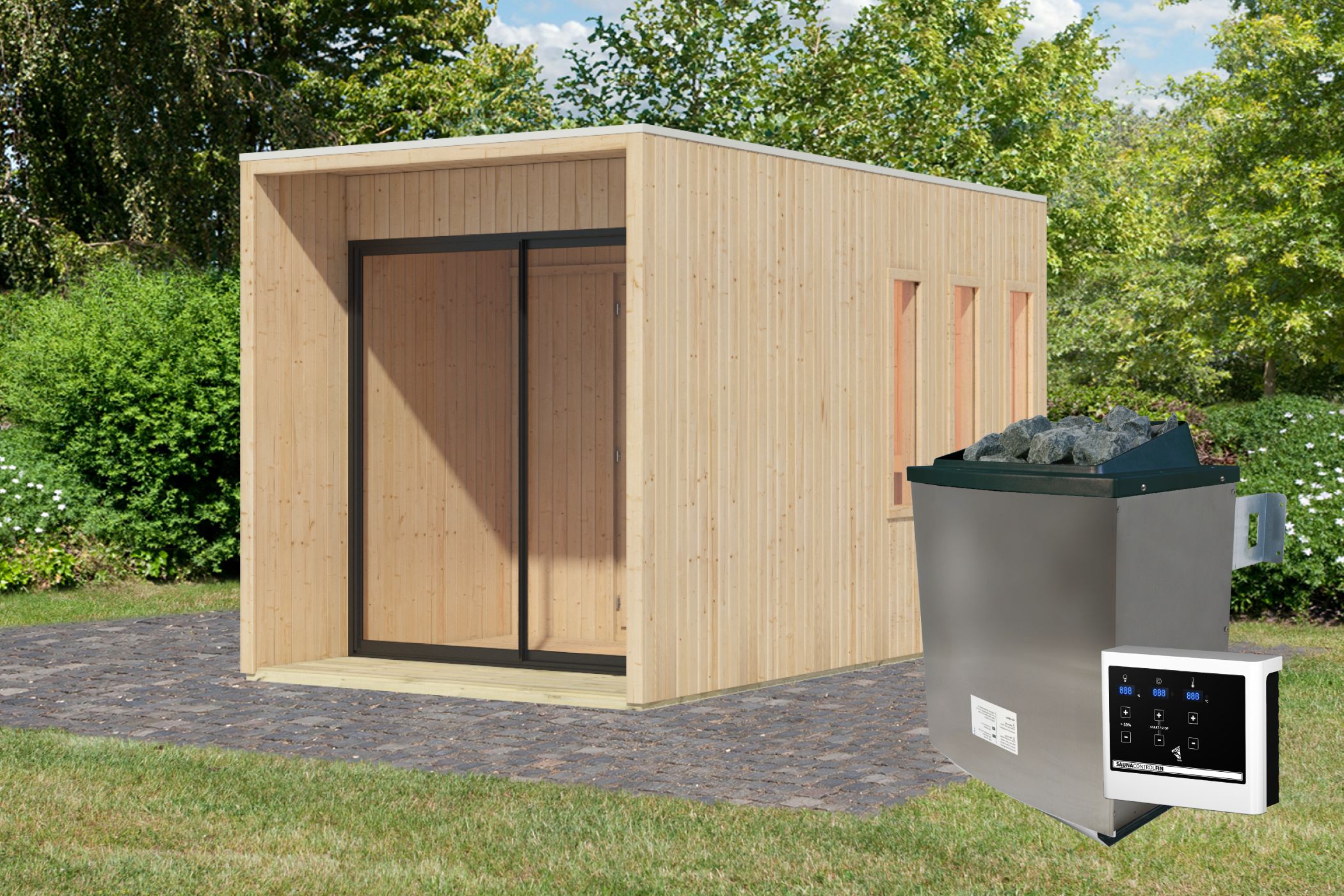

Sauna house Miramar
Karibu Gartensauna "Saunahaus Miramar" mit Vorraum 5 Personen Natur 9 kW Ofen (finnisch) + Steuergerät
Ab 6.249,99 €
Prices incl. VAT plus shipping costs
- 73mm wall elements
- Inkl. 3 frei positionierbare Fensterelemente
- Incl. terrace with kdi planking
- Powder-coated aluminum sliding door
Mit einer beeindruckenden Wandstärke von 73 mm bieten unsere Saunahäuser eine ausgezeichnete Isolierung, die Ihnen ein angenehmes Saunaerlebnis in jeder Jahreszeit garantiert. Die Elementbauweise ermöglicht eine einfache Montage und sorgt für eine robuste und langlebige Konstruktion Mit einem Gesamtmaß von 217 cm x 429 cm bietet es genügend Platz für ungestörte Wellnessstunden im eigenen Garten. Der Saunaraum ist mit einer Fläche von 204 cm x 204 cm natürlich ebenfalls ausreichend dimensioniert. Innen bieten 3 Saunabänke Platz zur Entspannung. Das formschöne und praktische Dach sorgt für den Witterungsschutz von oben.
Access to the sauna house is via a Terrace with KDI planking . Von dort ist die Aluminum sliding door aus hochwertigem 5mm dickem, klarem Einscheibensicherheitsglas zu erreichen. Durch die Bürstendichtung wird das Eindringen von Wind, Staub, Schmutz und beispielsweise Insekten vorbei an dem pulverbeschichteten anthrazitgrauen Türrahmen minimiert. Die Schiebetür kann durch ein Zylinderschloss abgeschlossen werden.
Ensure the necessary distance to the ground pressure-impregnated floor beams . The wall boards and the tongue and groove boards of the floor are mounted on these. A stove protection grille and all necessary screws and fittings as well as informative installation instructions are of course also included.
Hint: Mirror-inverted mounting possible (windows in the side can also be mounted on the other side)
Hint: Roof covering optionally available
Hint: Heat-resistant silicone cables/connection cables not included
Hint: Heat-resistant silicone cables/connection cables not included

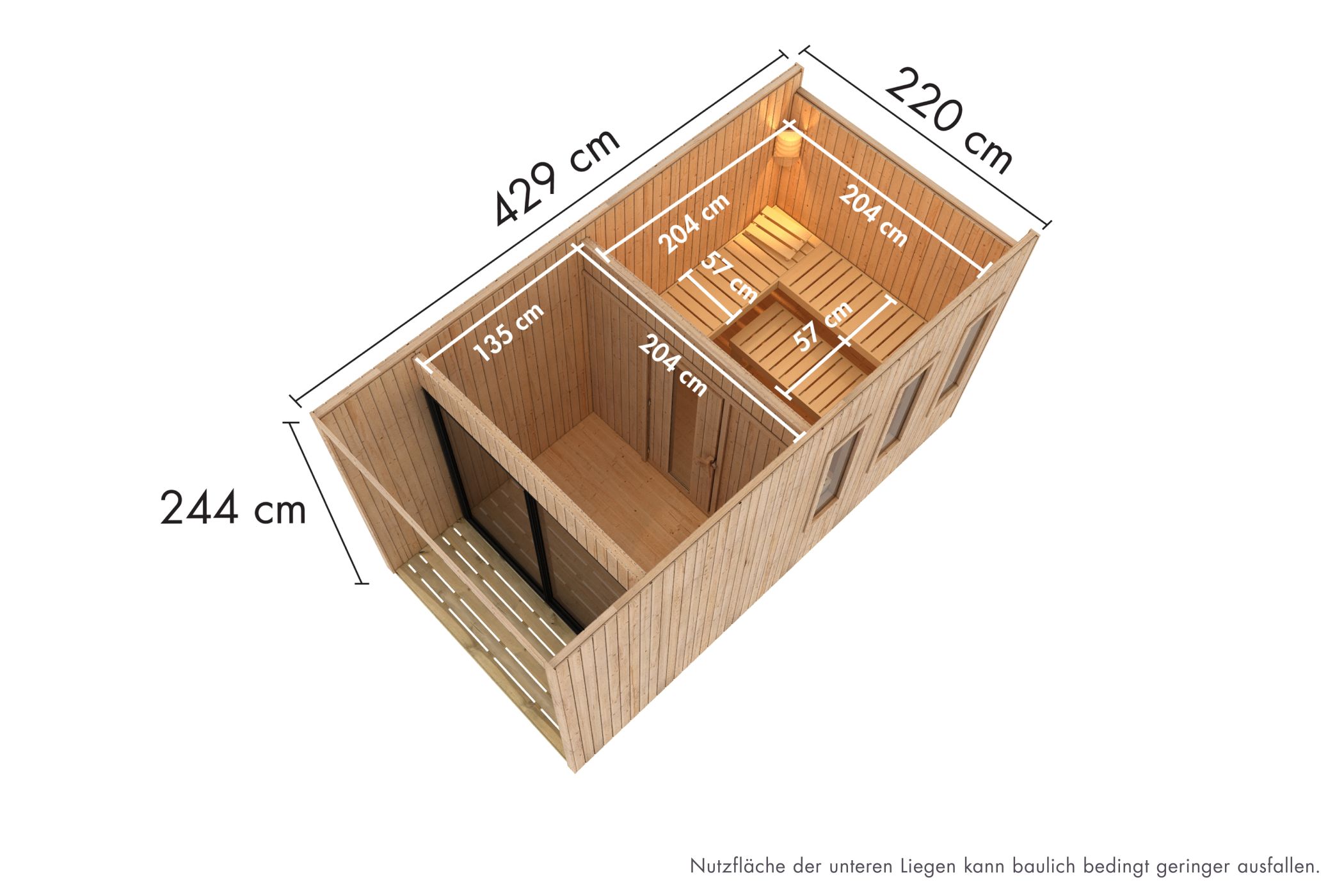

| Construction: | Pre-assembled elements |
|---|---|
| Number of benches: | 3 pcs. |
| Outer dimension width: | 220 cm |
| External dimensions depth: | 429 cm |
| Bank 1 Depth: | 57 cm |
| Bench 2 Depth: | 57 cm |
| Bank 3 Depth: | 57 cm |
| Bench Material: | Aspen |
| Requirements for roof foil (pcs.): | 3 |
| Storm anchor requirements (pcs.): | 8 |
| Roof area: | 10.4 m² |
| Roof shape: | Flat roof |
| Passage dimension width: | 90 cm |
| Passage dimension height: | 193 cm |
| Entry Type: | Front entry |
| Color: | Natural |
| Window width : | 122 cm |
| Window height : | 42 cm |
| Ridge height: | 244 cm |
| Floor type: | Solid wood |
| Base: | 9,2 m² |
| Inner Dimensions Width Overall: | 204 cm |
| Inner dimensions width sauna: | 204 cm |
| Inner dimensions width vestibule: | 204 cm |
| Inner dimensions height overall: | 214 cm |
| Interior dimensions height sauna: | 191 cm |
| Interior dimensions height vestibule: | 214 cm |
| Inner Dimensions Depth Total: | 342 cm |
| Interior dimensions depth sauna: | 204 cm |
| Inner dimensions depth vestibule: | 135 cm |
| Berths: | 3 |
| Material: | Nordic Spruce |
| Furnace protection width: | 60 cm |
| Furnace protection height: | 80 cm |
| Furnace Guard Material: | Nordic Spruce |
| Furnace protection depth: | 51 cm |
| Furnace control: | extern Easy Finnisch |
| Sauna roof construction: | Pre-assembled elements |
| Sauna roof insulation: | Mineral wool |
| Height: | 244 cm |
| Seats: | 5 |
| Mirrorable: | yes |
| Type of oven: | 9 KW external control |
| Door Width: | 196 cm |
| Door height: | 200 cm |
| Door Lock: | Cylinder lock with 2 keys |
| Door Type: | Sliding door |
| Door opening direction: | can be posted on the right and left |
| Enclosed space: | 20.9 m³ |
| Packaging dimensions mm/weight kg: | 2100x1100x300x157 385x290x140x18 560x460x460x17 325x240x120x1.5 , 4310x1210x1180x950 |
| Anteroom m²: | 2.75 m² |
| Wall thickness: | 73 mm |
This depends on the local building regulations and therefore depends on where you live. Our general guide to garden house building permits provides you with basic information on the subject. But: In any case, check with your responsible building authority before building.
Yes, an even and stable surface is important in any case. There are different ways to build it - even on your own. Take a look at our guide to the different types of garden house foundations, which also applies to a garden sauna.
This depends, among other things, on the size of your garden sauna. You can find a detailed overview with additional information worth knowing in our selection guide for the right sauna heater.
The available stoves differ, among other things, in their performance as well as in the type of heat (wet or dry) they generate. We give you detailed information about the special features of the different sauna heaters in our detailed article.
This depends on the wood color chosen. Basically, you can use our tips for maintaining and painting the garden house as a guide. Note, however, that the treatment of a sauna for the garden must be done slightly differently in detail, e.g. the inside of the sauna may not be treated. You can find out more about this in our information booklet.
Yes, we have prepared video tutorials for individual products that you can use for DIY assembly. You can find out whether the model you have chosen is one of them under the assembly videos for our garden saunas and garden sheds.
In our FAQ section you will find many more answers to frequently asked questions about our products, the ordering process and assembly. Or feel free to contact us if your question is not answered there either.
