Product:
1116
Economy set organic combi stove 9 kW + control unit HUUM "UKU WIFI" with app control
From €1,099.99 Prices incl. VAT plus shipping costs
€1,179.99*
-6.78%
You save €80.00
- Furnace TÜV-SÜD certified / Control system SGS-certified
- Incl. 18 kg Diabass Bricks
- Hot Fired Aluminized Furnace Inner Jacket
- Integrated evaporator unit with drain (capacity: 4 L)
- Removable bottom plate with drip tray
- Furnace outer jacket made of stainless steel
- Water shortage monitoring
- Wi-Fi-enabled control unit
- Sauna heater can be controlled via free app
- Control your sauna on the go and save time
- Elegant control unit/control unit
- Easy operation locally on the control unit and in the app
- Connection for a sauna light or fan available
Maximum flexibility for your Sauna experience – with our powerful savings set of 9 kW BIO combi sauna heater and the innovative HUUM UKU WiFi control with App function. This set offers you everything you need for intensive, versatile and comfortable sauna: Whether classic Finnish saunas Sauna, gentle soft steam bath, herbal steam bath or a pleasant family bath – thanks to the integrated evaporator unit (4 L), everything is possible.
The high-quality workmanship Sauna heater with stainless steel outer jacket, fire-aluminized interior, drip tray and evaporator tray for essential oils convinces with safety, Functionality and design. Already included in the scope of delivery are 18 kg Diabass Stones , optimally store the heat generated and apply it evenly to the environment – for an intense and pleasant sauna experience. Controlled the whole thing is conveniently controlled via the modern HUUM UKU WiFi control system – either classically on the device or via the free HUUM app on your smartphone.

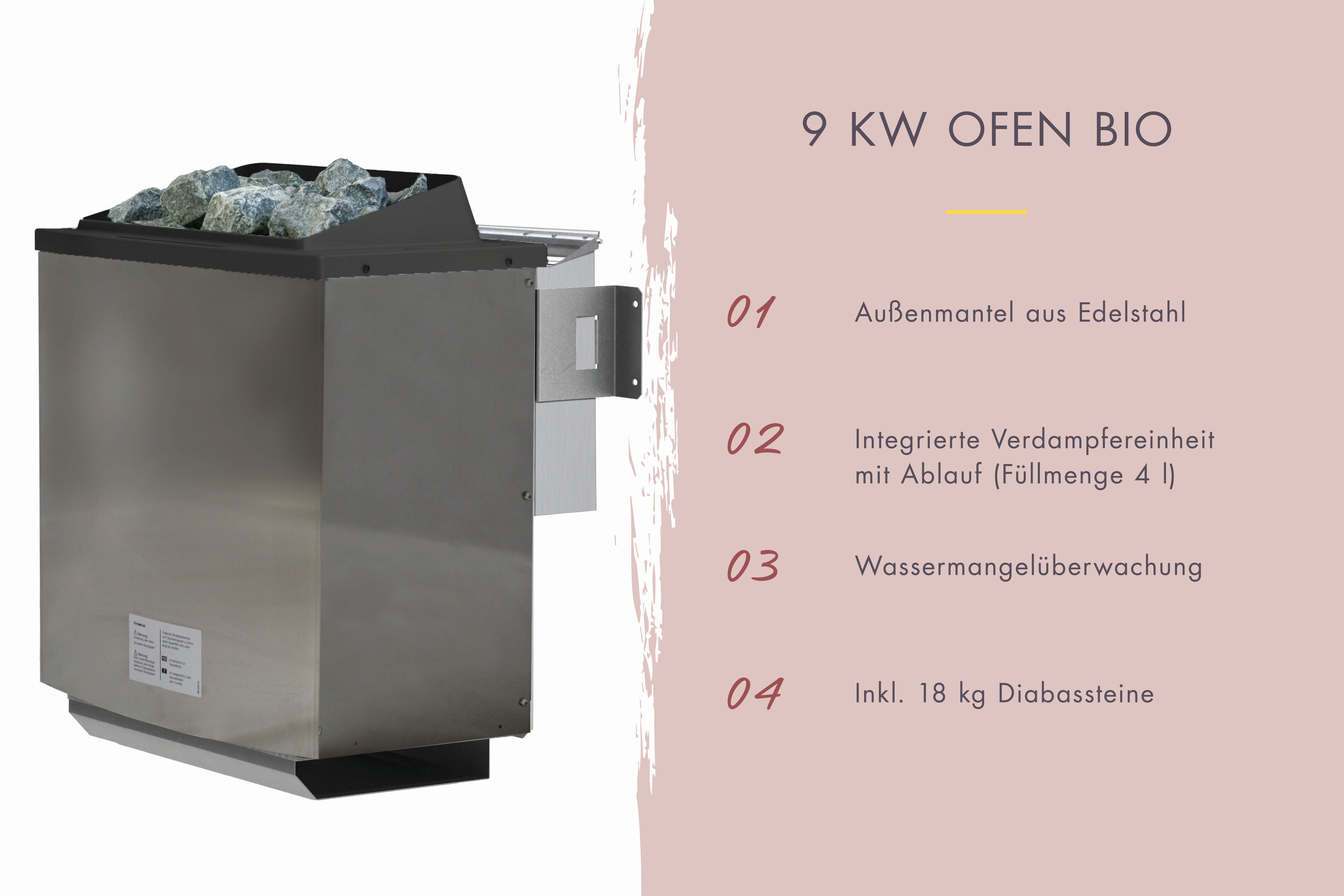

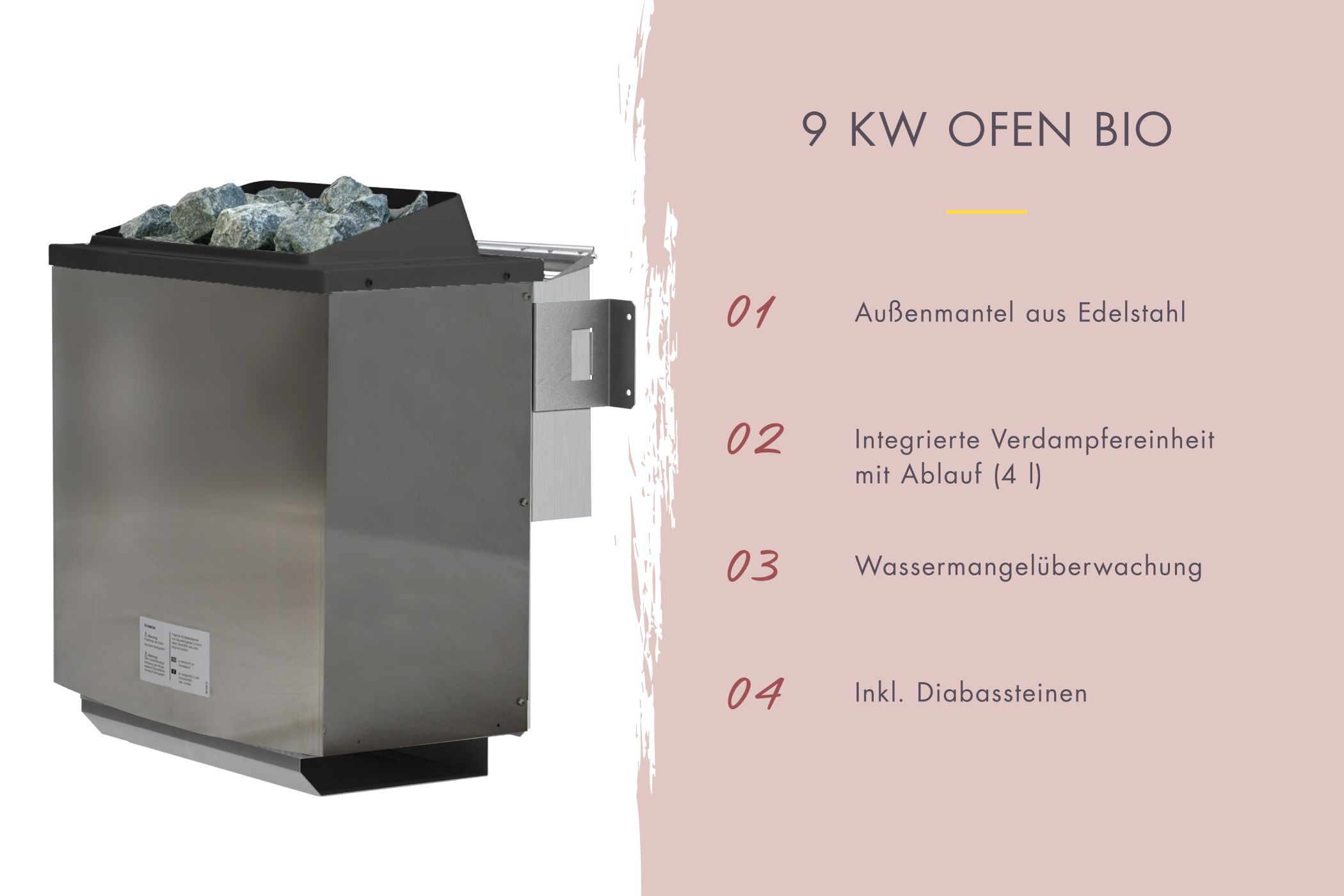

Technical data – Bio combi sauna heater (9 kW):
- Power: 9 kW – for medium-sized Sauna cabins (high-voltage connection required)
- Oven type: Bio combi oven – suitable for Finnish sauna, soft steam bath, herbal steam bath, family bath
- Evaporator Unit: Integrated with drain, capacity: 4 litres
- Security features: Water shortage monitoring, dry-running protection
- Additional features: Detachable Bottom plate with drip tray, evaporator tray for essential oils
- Outer jacket: stainless steel – robust & easy to care for
- Inner jacket: hot-dip aluminized Steel – noise-reducing
- Rear panel & junction box: Made of hot-dip aluminized steel
- Cover frame: Aluminium die-casting – dimensionally stable & high-quality
- Dimensions (WxHxD): 41 x 50 x 37 cm
Specifications – HUUM UKU WiFi Control:
- App Control: Compatible with Android, iOS & Web – free to use
- Operating Temperature Range: 40 – 100 °C
- Switching capacity: For sauna heaters up to 18 kW
- Operating voltage: 400V 3N
- Heating cycles: 3 h / 8 h / 12 h
- Functions: Timer, Temperature control, connection for evaporator, lighting & fan
- Security features: Child lock, door sensor, overheating protection
- Design: Stylish black Control unit with intuitive menu navigation
- Dimensions control unit: 105 x 55 x 22 mm
- Dimensions control console: 142 x 90 x 58 mm
- Scope of delivery: control unit, Relay box, connection cable, thermal sensor, door sensor, sensor cable
Product advantages:
- TÜV-SÜD certified sauna heater & SGS-certified HUUM control system
- Integrated evaporator unit for different sauna variants
- Wi-Fi-enabled control – operable locally & via free HUUM app
- Incl. 18 kg diabase stones, Drip tray & evaporator tray for aromatic infusions
- Connection for sauna lighting or fan available
- High-quality materials: Stainless Steel Outer Jacket & Hot-Dip Aluminized Inner Jacket
- Easy installation & Intuitive operation – also suitable for sauna novices
Please note:
The assembly and electrical Connection of the sauna equipment and other electrical equipment may be can only be done by a licensed electrician.
Hint:
- Only for the private domestic Suitable for use.
- Excl. Heat-resistant silicone cable
Safety note:
Please connect your Wi-Fi control unit to the Internet at all times, so that important firmware and security updates can be installed automatically.This depends on the local building regulations and therefore depends on where you live. Our general guide to garden house building permits provides you with basic information on the subject. But: In any case, check with your responsible building authority before building.
