Product:
68843
Carport Kirn 1
From €1,789.99 Prices incl. VAT plus shipping costs

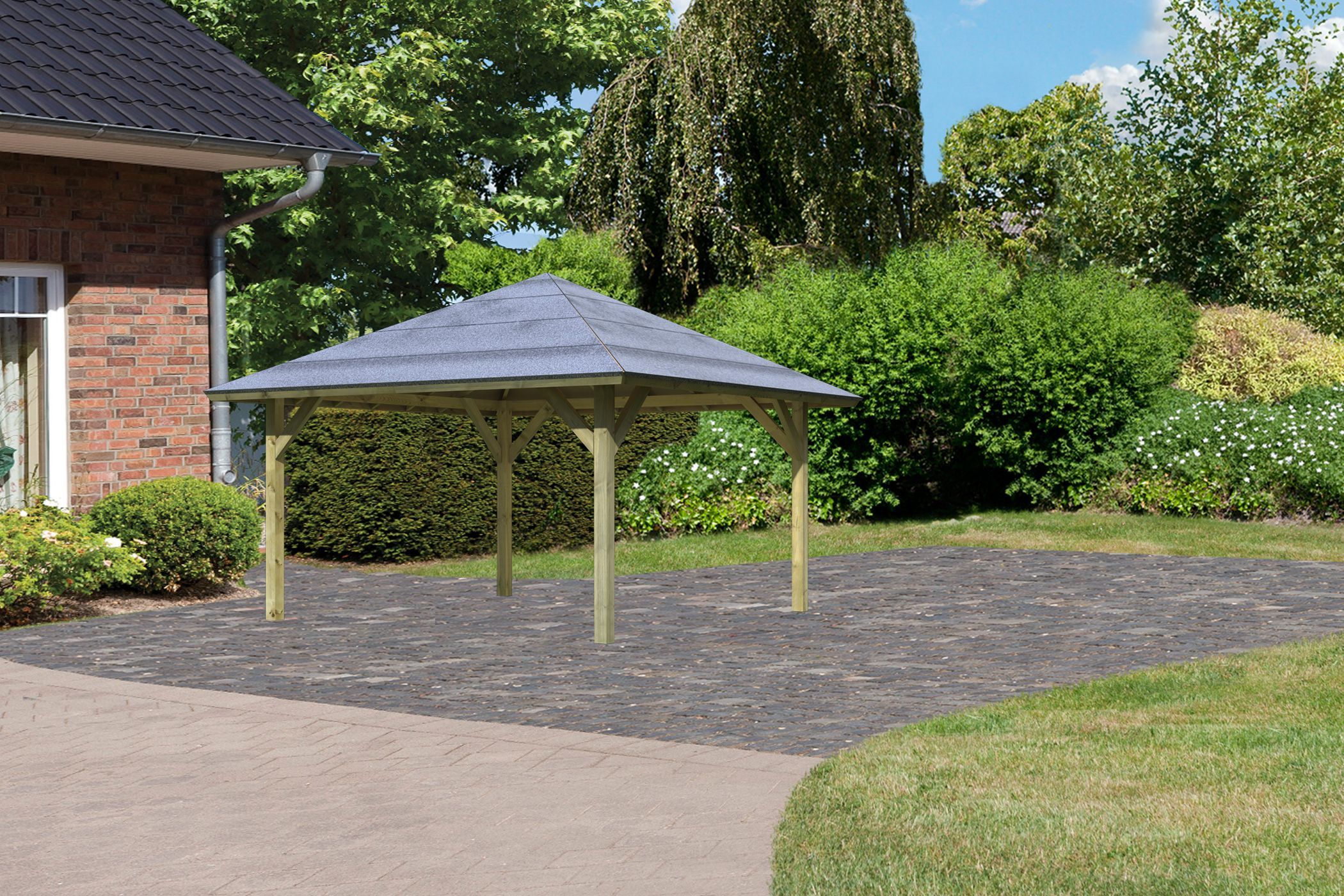

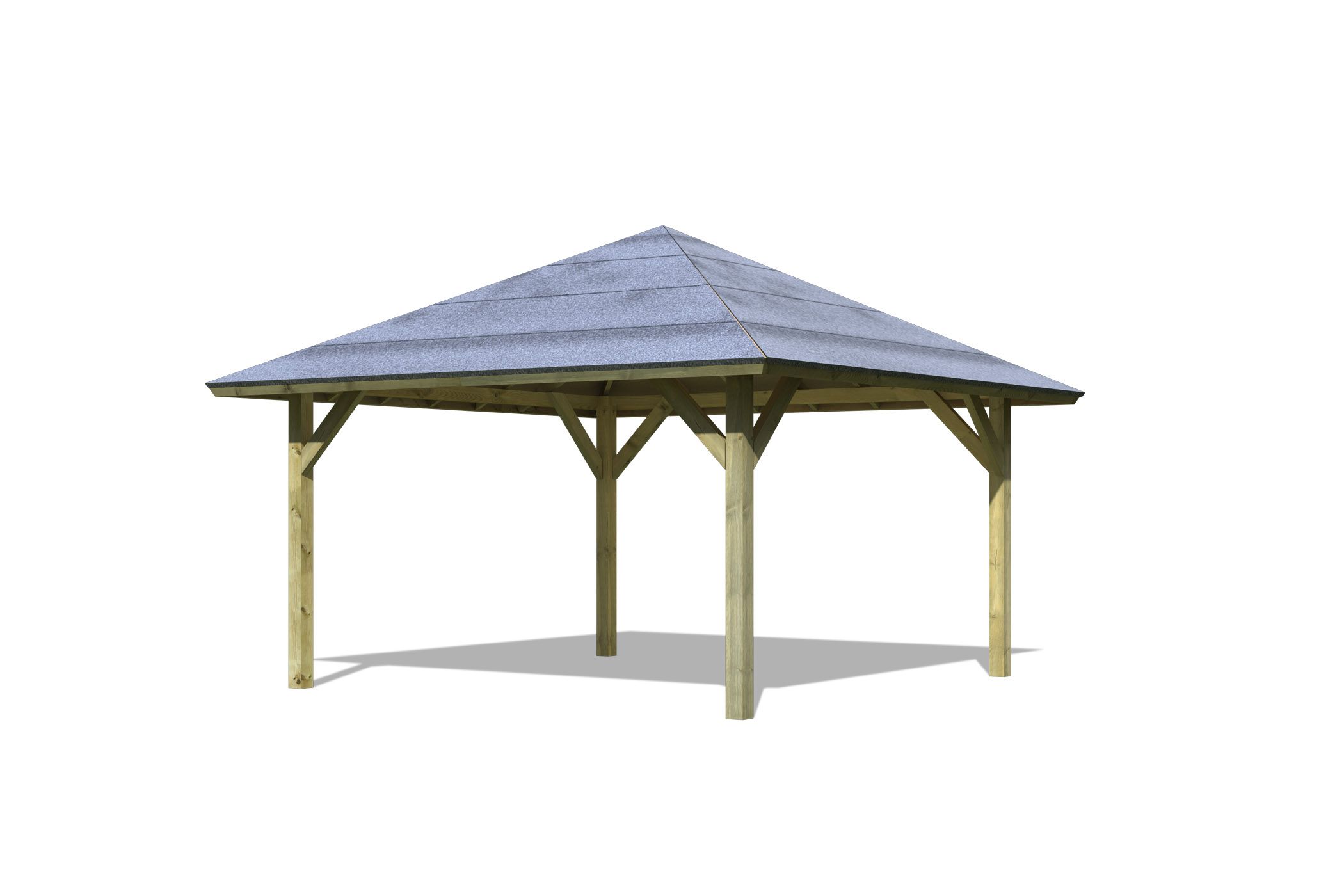

A gazebo can be used for many different purposes. It is also possible to park your car without further ado. With an external dimension of 359 x 359, the Kirn 1 gazebo carport is the ideal size for your car. The hipped roof clearly distinguishes the carport from our other models in its appearance. The four sloping surfaces give your carport a special look. So the pavilion carport is guaranteed to be an eye-catcher on your property. The roof consists of roof panels and can be ideally protected from the weather by optionally available roof shingles. The roof construction is supported by 11.5x11.5cm thick posts and cross connectors made of pressure-impregnated solid wood. Due to the special treatment of the wood and the stable construction, the gazebo carport becomes a long companion and is ideally protected from the weather. The posts are anchored to the ground by optionally available H-post anchors, providing a stable, solid shelter for your car. Protected from snow, ice or heat, your car is ready to go at any time. A roof overhang of 36 cm offers additional protection on all sides. This will ensure that your car remains free of the falling leaves and pollen from the trees. Protect your car and put it in the limelight with the elegant and spacious Kirn 1 gazebo carport.

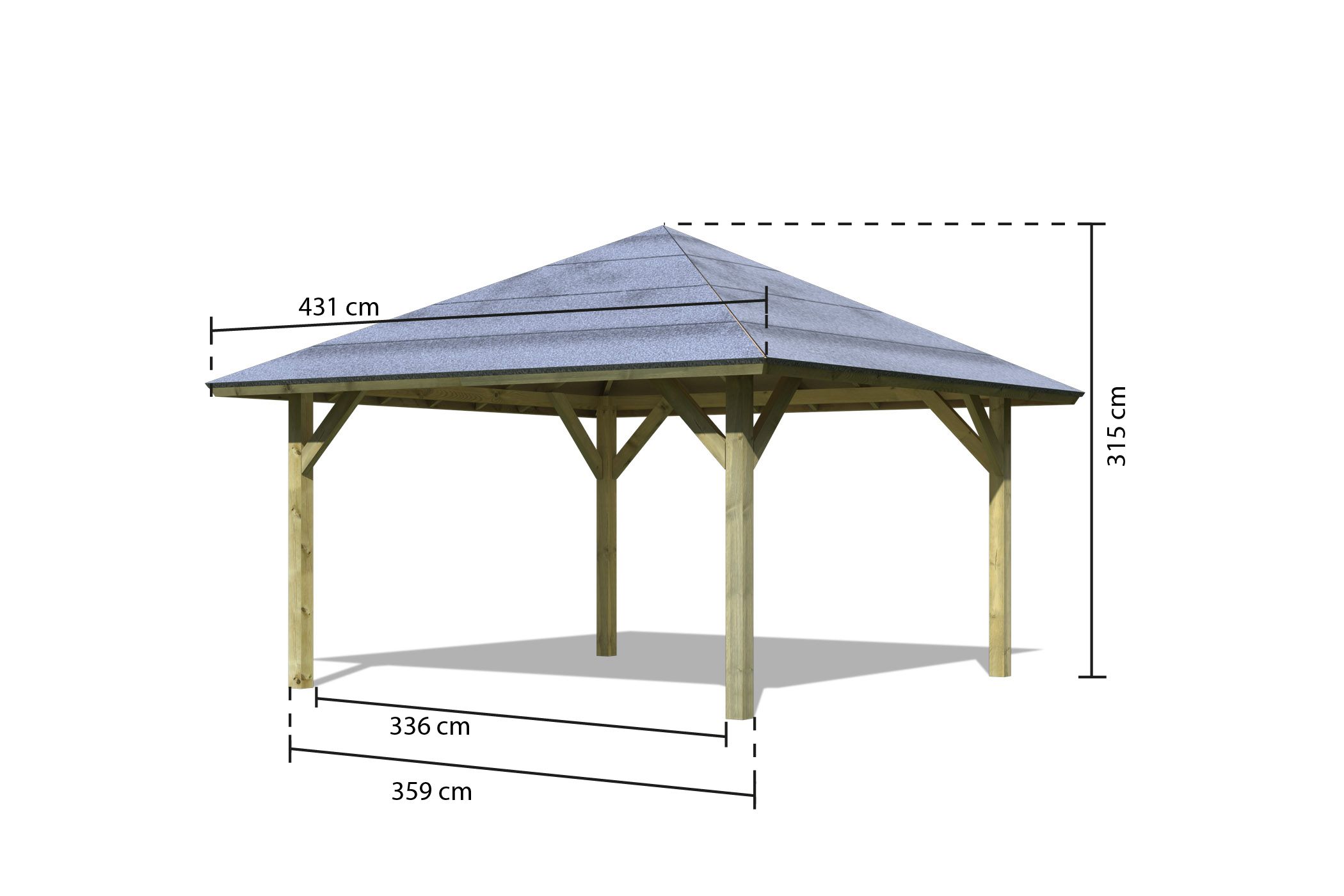

| Number of posts: | 4 |
|---|---|
| Outer dimension width: | 359 cm |
| External dimensions depth: | 359 cm |
| Requirements for roof shingles (pcs.): | 9 |
| Roof width: | 431 cm |
| Roof area: | 20.83 m² |
| Roof pitch: | 27° |
| Roof depth: | 431 cm |
| Rear roof overhang: | 36 cm |
| Roof overhang left side: | 36 cm |
| Roof overhang right side: | 36 cm |
| Front roof overhang: | 36 cm |
| Vertical clearance: | 194 cm |
| Ridge height: | 315 cm |
| Inner dimension width: | 336 cm |
| Inner dimension depth: | 335 cm |
| Material: | Pressure impregnated |
| Post depth: | 12 cm |
| Snow load: | 75 kg/m² |
| Enclosed space: | 32.7 m³ |
| Post width: | 12 cm |
This essentially depends on where you live. In our general guide, we will tell you when a carport building permit is required. It also applies to a garage. Important: The information is only for rough orientation, because only your local building authority can give you binding information.

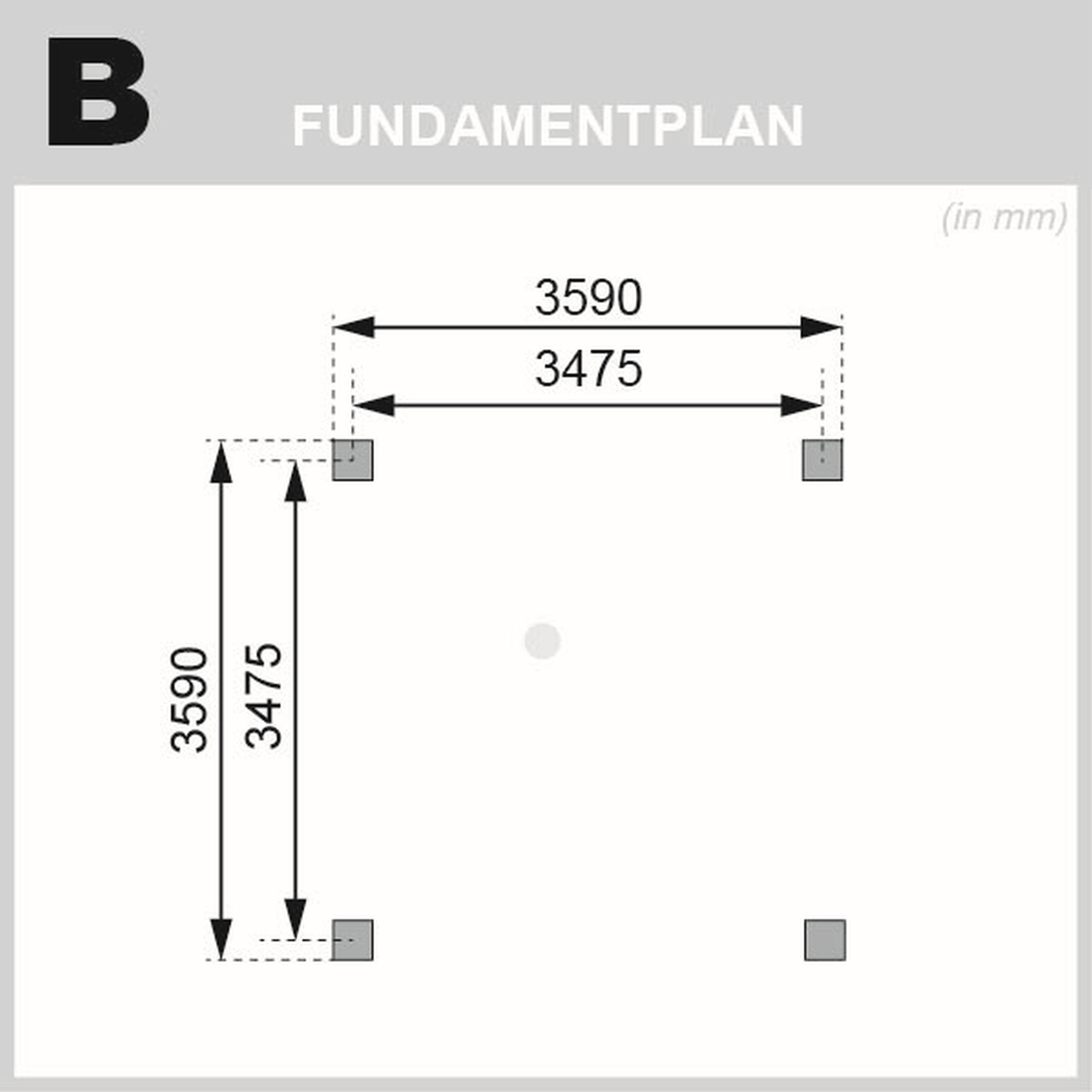

The correct procedure is important, which we explain in our easy-to-understand guide to concreting H-post anchors for a carport or garage.
To ensure that the building is protected against wind and weather and remains undamaged in the long term, appropriate wood protection is essential. With our tips for optimal carport care, you're doing everything right. You can also use the care instructions for a wooden garage.
In our FAQs, we provide many more answers to frequently asked questions about our carports, garages and other products. Here you will also find information about the ordering process, delivery and much more. Or feel free to contact us if you have a special request.
Product:
68843
Carport Kirn 1
External dimensions W x D
359 cm x 359 cm
Number of posts
4
Ridge height
315 cm
Material
Pressure impregnated
Enclosed space
32.7 m³
Post width
12 cm
Delivery time: approx. 2 weeks
A gazebo can be used for many different purposes. It is also possible to park your car without further ado. With an external dimension of 359 x 359, the Kirn 1 gazebo carport is the ideal size for your car. The hipped roof clearly distinguishes the carport from our other models in its appearance. The four sloping surfaces give your carport a special look. So the pavilion carport is guaranteed to be an eye-catcher on your property. The roof consists of roof panels and can be ideally protected from the weather by optionally available roof shingles. The roof construction is supported by 11.5x11.5cm thick posts and cross connectors made of pressure-impregnated solid wood. Due to the special treatment of the wood and the stable construction, the gazebo carport becomes a long companion and is ideally protected from the weather. The posts are anchored to the ground by optionally available H-post anchors, providing a stable, solid shelter for your car. Protected from snow, ice or heat, your car is ready to go at any time. A roof overhang of 36 cm offers additional protection on all sides. This will ensure that your car remains free of the falling leaves and pollen from the trees. Protect your car and put it in the limelight with the elegant and spacious Kirn 1 gazebo carport.
| Number of posts: | 4 |
|---|---|
| Outer dimension width: | 359 cm |
| External dimensions depth: | 359 cm |
| Requirements for roof shingles (pcs.): | 9 |
| Roof width: | 431 cm |
| Roof area: | 20.83 m² |
| Roof pitch: | 27° |
| Roof depth: | 431 cm |
| Rear roof overhang: | 36 cm |
| Roof overhang left side: | 36 cm |
| Roof overhang right side: | 36 cm |
| Front roof overhang: | 36 cm |
| Vertical clearance: | 194 cm |
| Ridge height: | 315 cm |
| Inner dimension width: | 336 cm |
| Inner dimension depth: | 335 cm |
| Material: | Pressure impregnated |
| Post depth: | 12 cm |
| Snow load: | 75 kg/m² |
| Enclosed space: | 32.7 m³ |
| Post width: | 12 cm |
