Product:
50724

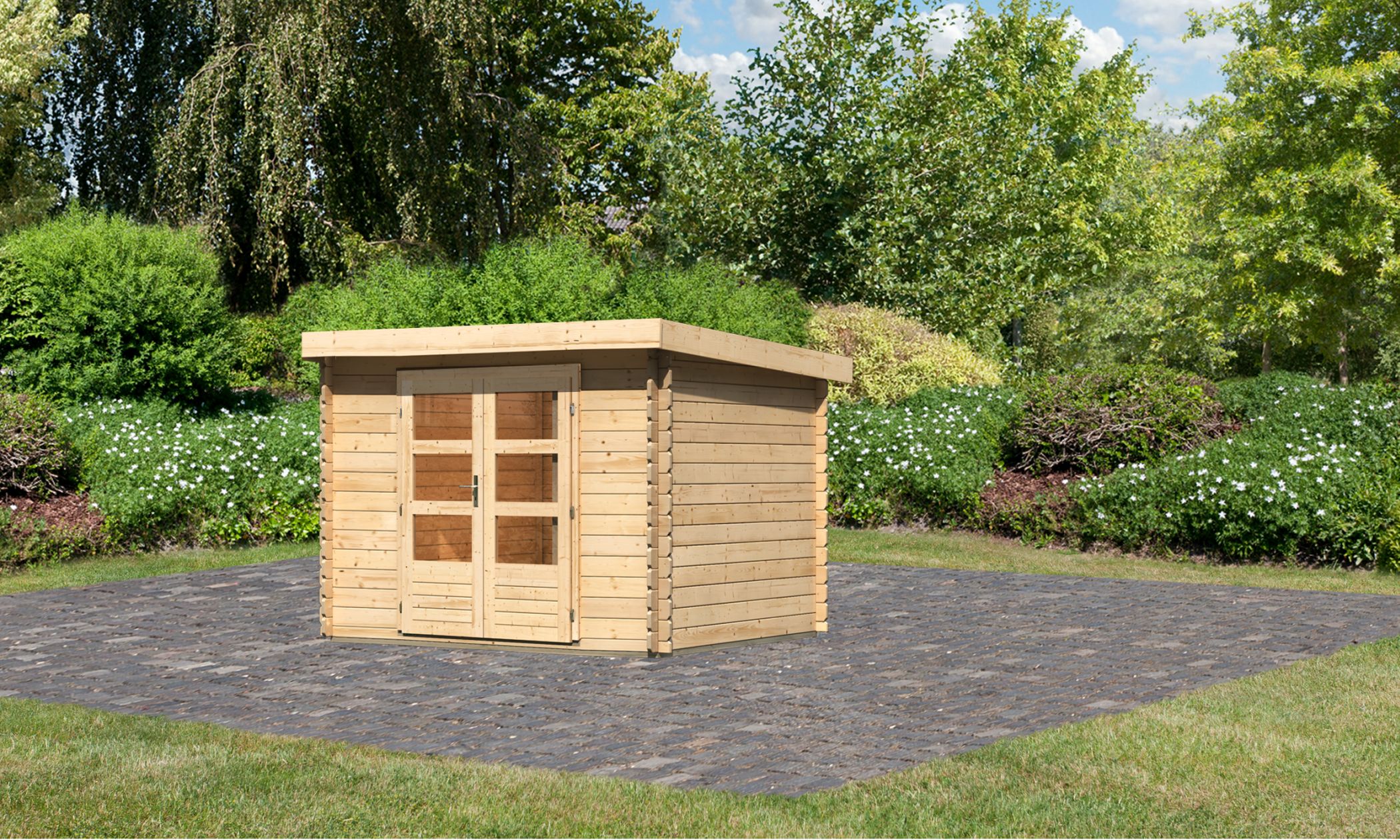

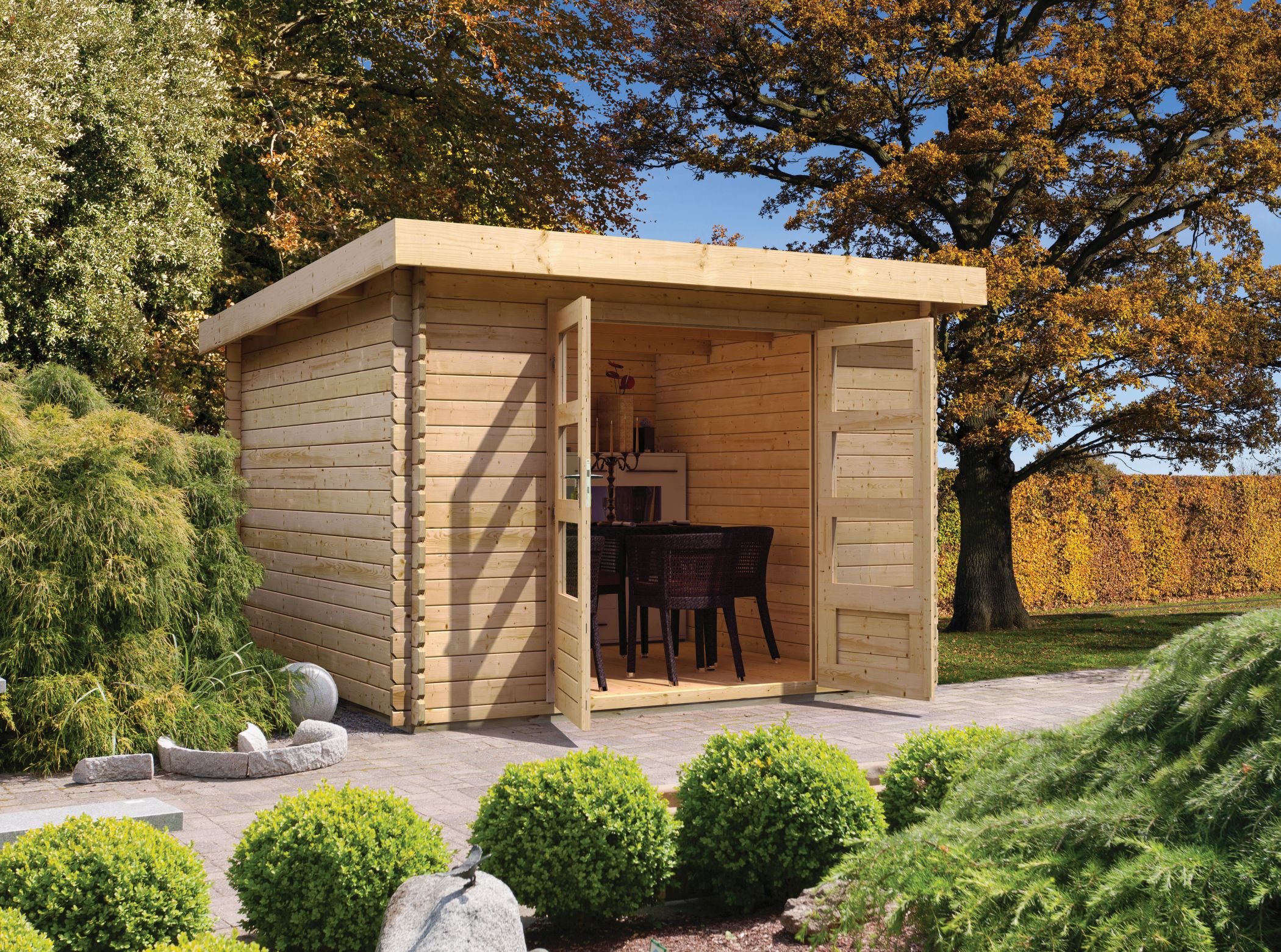

Garden house Bastrup 3 with SOLAR-KIT
Karibu kleines Gartenhaus “Bastrup 3 mit SOLAR-KIT” Pultdach mit Anbau/Terrasse aus Holz in Natur
Ab 1.949,00 €
Prices incl. VAT plus shipping costs
- Incl. Solar KIT 400Wp with inverter, bracket and connection cable
- Garden house made of high-quality Nordic spruce

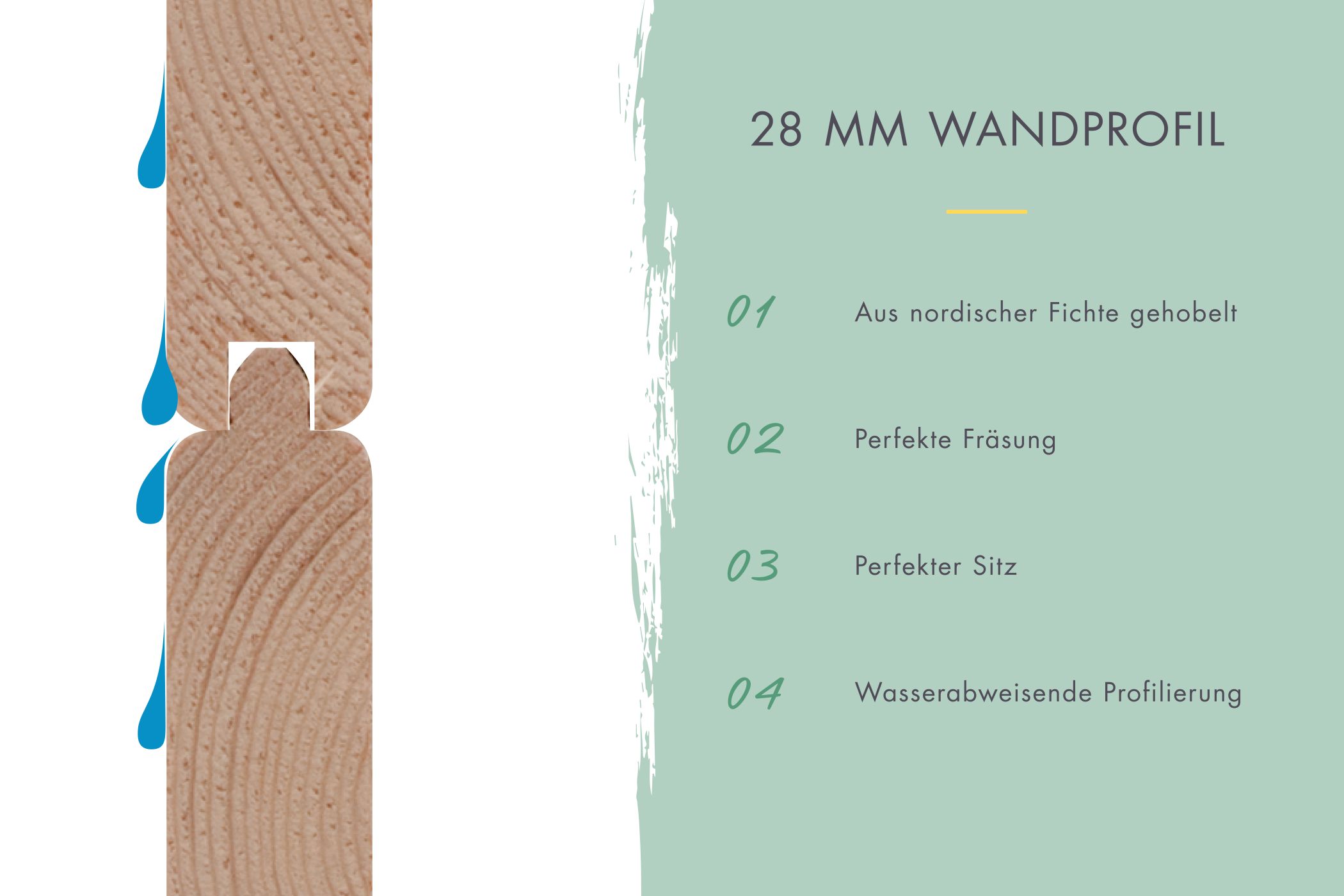

- tongue and groove connection and water-repellent profiling

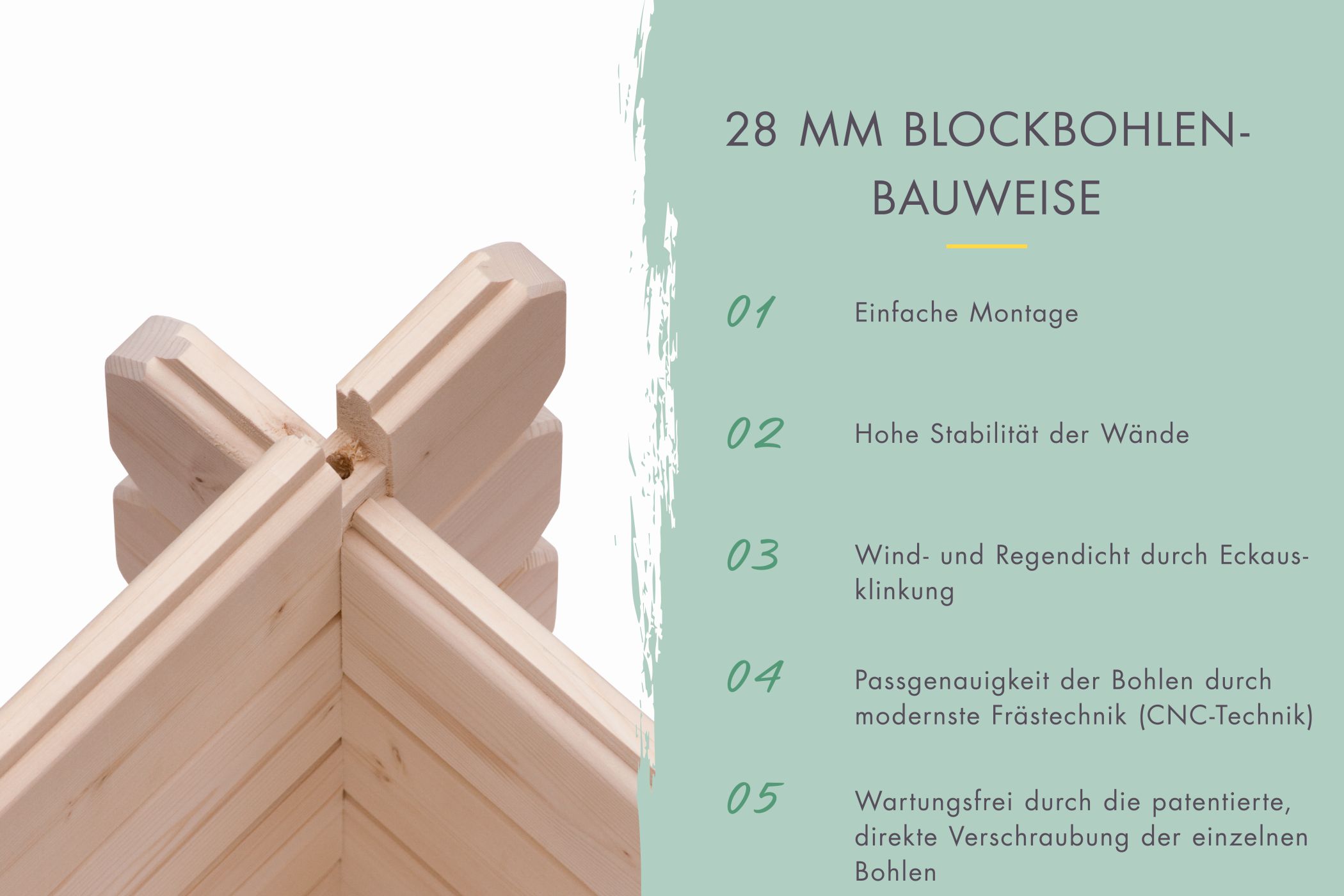

- No threaded rod required due to patented 6-plus corner connection

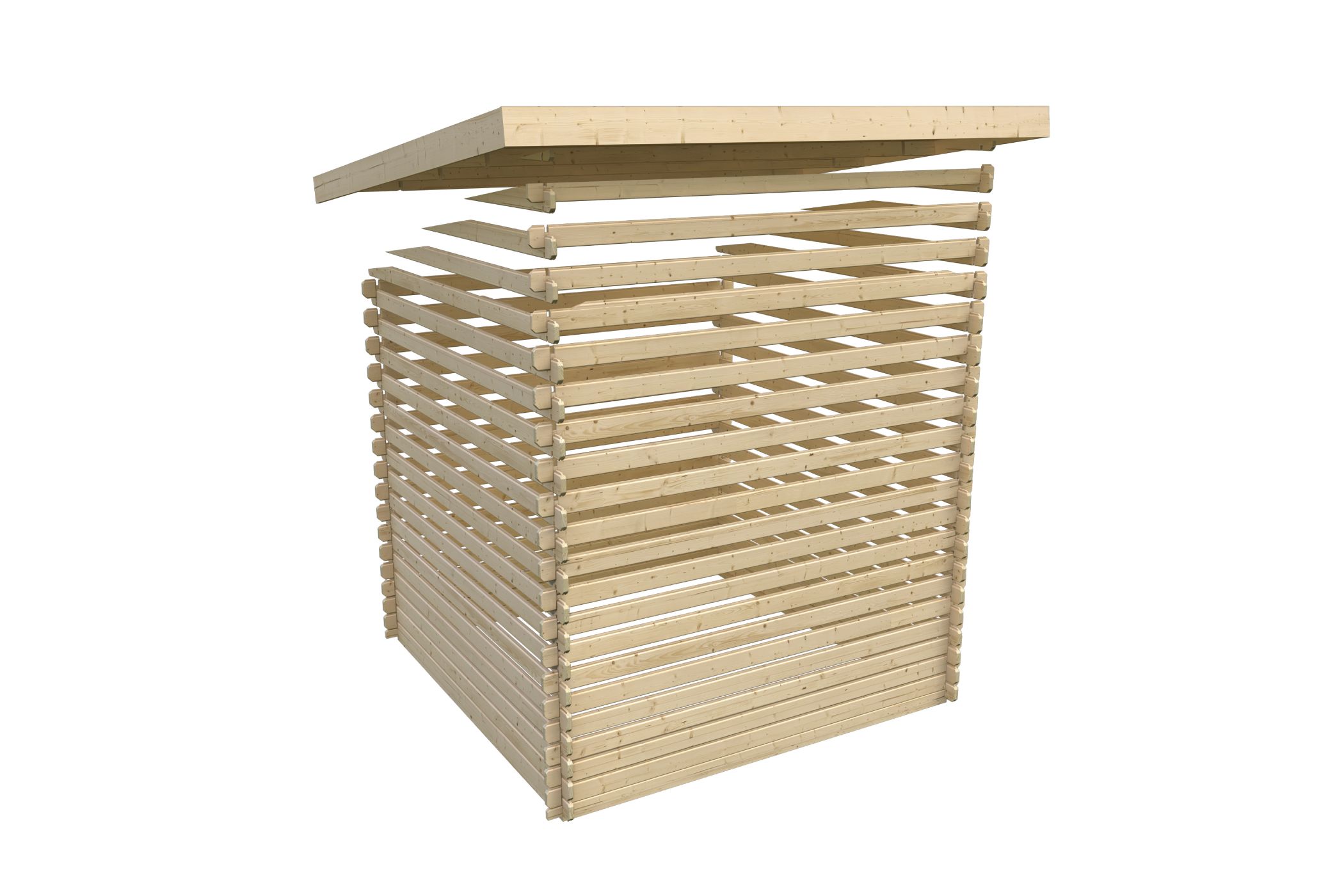

- Quick assembly by simply putting the individual planks on top of each other
Das moderne Blockbohlenhaus mit Pultdach. Das Bastrup 3 with SOLAR-KIT and 28 mm thick planks is made of Nordic spruce wood. A major advantage of this series is the patented 6-Plus corner joint. Together, this not only makes for a durable, stable construction, but also a robust overall look. This is what makes the Bastrup garden house with an external dimension of (WxD) 297 x 237 cm zu einem langen, treuen und festen Begleiter im eigenen Garten. Einmal aufgebaut und eingerichtet ist das Haus nicht mehr wegzudenken. In das Innere gelangen Sie durch eine großzügige Doppelflügeltür mit drei Lichtausschnitten je Türflügel. Gesichert wird das Haus mithilfe eines Zylinderschlosses in der Tür. Durch die Lichtausschnitte gelangt Tageslicht in den Innenbereich und lässt das Haus somit nicht nur von außen strahlen. Das Gartenhaus ist in Naturbelassen erhältlich. Verstauen Sie zum Beispiel Ihre Gartengeräte im Inneren des Häuschens, um Ihren Garten nach getaner Arbeit ordentlich zu hinterlassen oder nutzen Sie den Innenbereich zur Lagerung Ihrer Gartenmöbel im Winter. Bereichern Sie Ihren Garten mit dem modernen Blockbohlenhaus Bastrup 3.

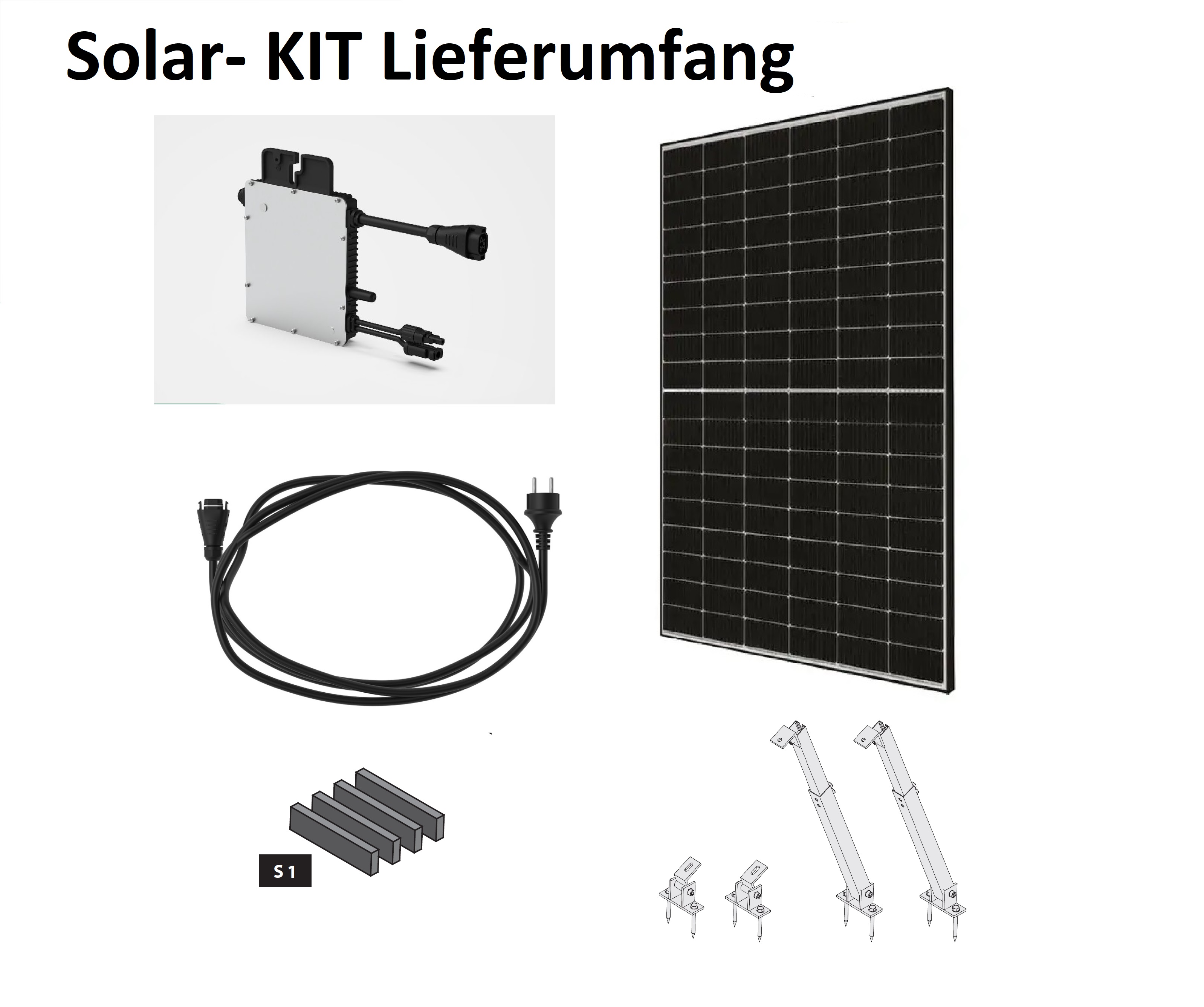

Including solar KIT:
Scope of delivery:

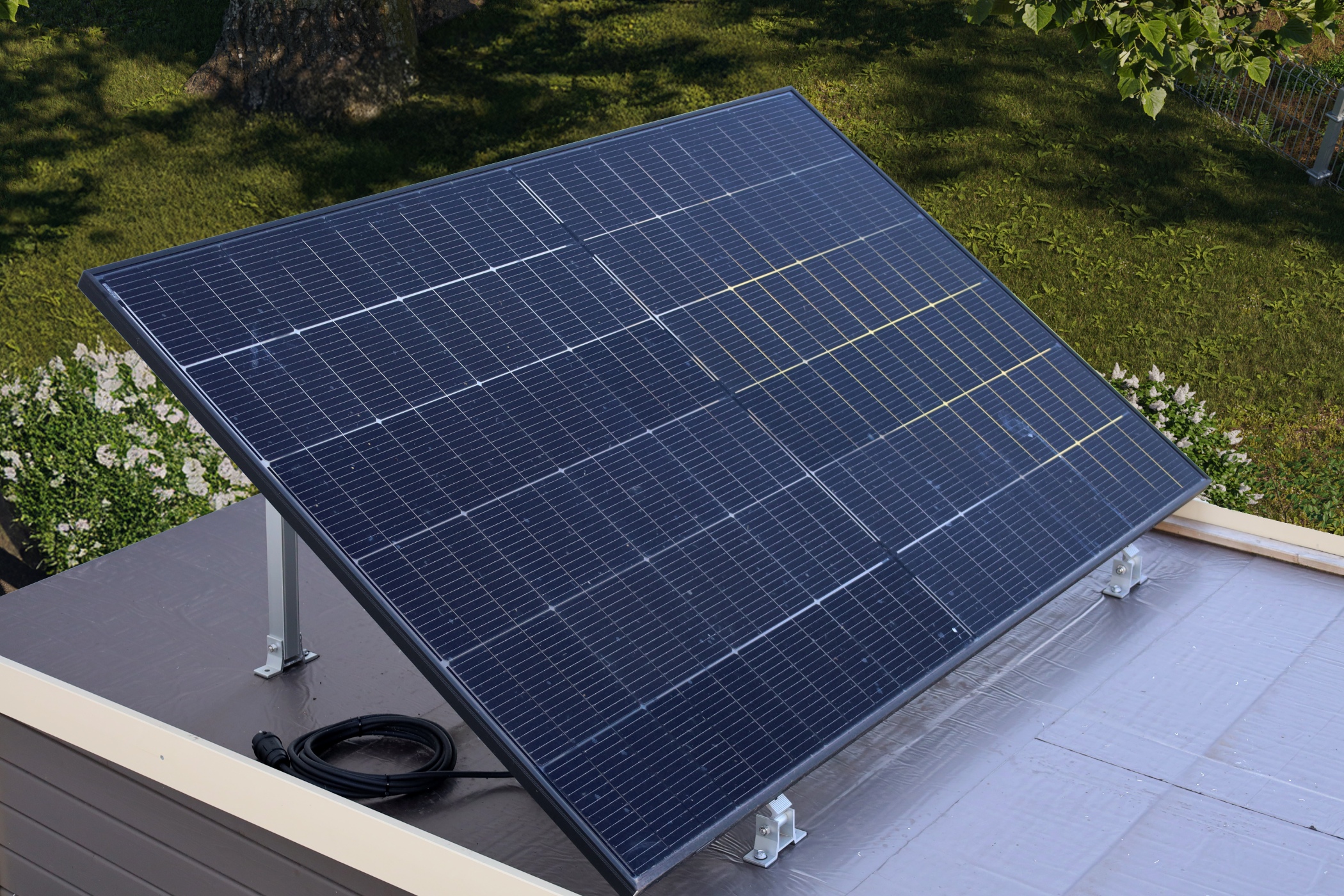

- Solar panel 400Wp (JA-Solar, TYPE JAM54S30-400/MR)
- Inverter HMS-400 (Hoymiles)
- Metal Bracket for Solar Panel
- 4 x wooden counter blocks to mount the bracket on the roof
- Connection cable 5 meters
Description Inverter:
With an output power of up to 400 VA, Hoymile's new HMS-400 microinverter is one of the best
1-in-1 microinverters.
The model listed is equipped with a reactive power control system and meets the requirements of
EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
- High-power 1-in-1 microinverter with an output power of up to 500VA
- With reactive power control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
- Safer for rooftop solar stations with rapid shutdown and isolated transformer
- Connected to a module; flexible for different Uses
- The Sub-1G radio solution enables stable communication with the optional Hoymiles DTU gateway (Homiles Gateway DTU not included, cost approx. €30)
Inverter specifications:
Input current (DC) information:
Input current (DC) information:
- Commonly used module power (W): 320 to 540+
- Maximum Input Voltage (V): 65
- MPPT Voltage Range (V): 16 - 60
- Inrush Voltage (V): 22
- Maximum Input Current (A): 14
- Maximum input short-circuit current (A): 25
- Number of MPPTs: 1
- Number of inputs per MPPT: 1
Output current (DC) information:
- Rated Output Power (VA): 400
- Rated Output Current (A): 1.74
- Rated output voltage/range (V): 230/180 - 275
- Rated frequency/range (Hz): 50/45 - 55
- Power factor (adjustable): >0.99 standard / 0.8 ahead ... 0.8 lagging
- THD: <3%
- Maximum units per 10 AWG strand: 18
- Maximum units per 12 AWG strand: 11/10
- (For the exact number of microinverters per string, please refer to local requirements.)
Mechanical data:
- Ambient temperature range (°C): -40 to +65
- Dimensions (W × H × D mm): 182 × 164 × 30
- Weight (kg): 1,75
- Protection Outdoor: IP67 (NEMA 6)
- Cooling: Natural Convection - No Fans
Description Solar Panel:
Half-cell solar module with 400 watts peak, 11 busbar PERC with high module power, low temperature coefficient, which has a positive effect on the yield.
The Ja-Solar JAM54S30-400/MR is a monocrystalline solar module with 400Wp.
- 108 monocrystalline half-cells
- Glass-foil module with black frame and white backfoil
- With EVO2 connector
- Latest technology for higher yields
- Low levelized cost of electricity
- Less loss due to shadows and ohmic loss
- Better mechanical tolerances for loads
- Dimensions: 1722 x 1134 x 30 mm
- Weight: 21.5 kg
Hint: Floor and roof covering optionally available (not included in the scope of delivery of the house)!

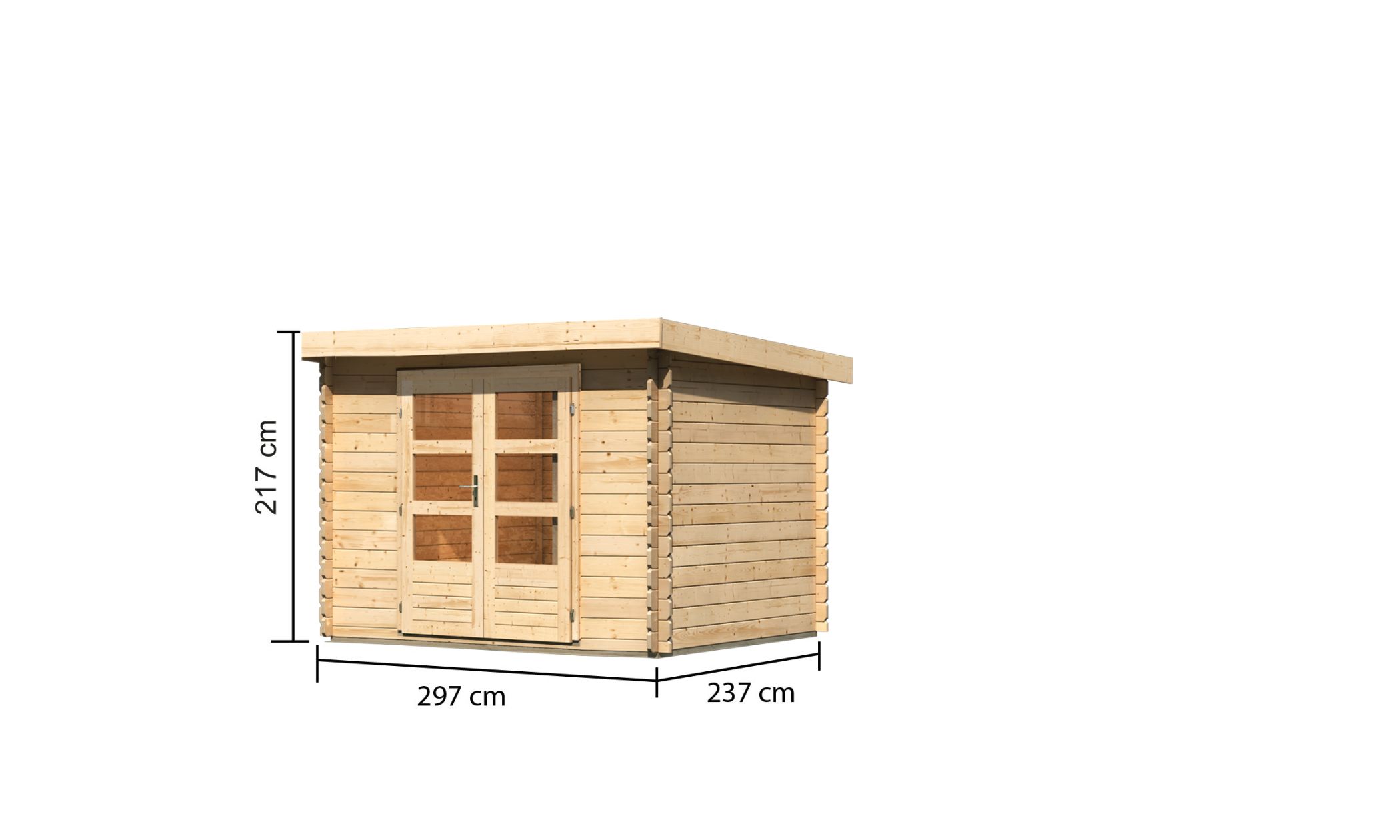

| Outer dimension width: | 297 cm |
|---|---|
| External dimensions depth: | 237 cm |
| Requirements for roof foil (pcs.): | 2 |
| Storm anchor requirements (pcs.): | 4 |
| Roof Material Thickness: | 16 mm |
| Roof width: | 315 cm |
| Roof area: | 8.4 m² |
| Roof shape: | Shed roof |
| Roof pitch: | 3° |
| Roof depth: | 273 cm |
| Roof type: | Solid wood roof |
| Passage dimension width: | 140 cm |
| Passage dimension height: | 173 cm |
| Color: | Natural |
| Ridge height: | 217 cm |
| Base: | 6.16 m² |
| Inner dimension width: | 274 cm |
| Inner dimension depth: | 214 cm |
| Material: | Nordic Spruce |

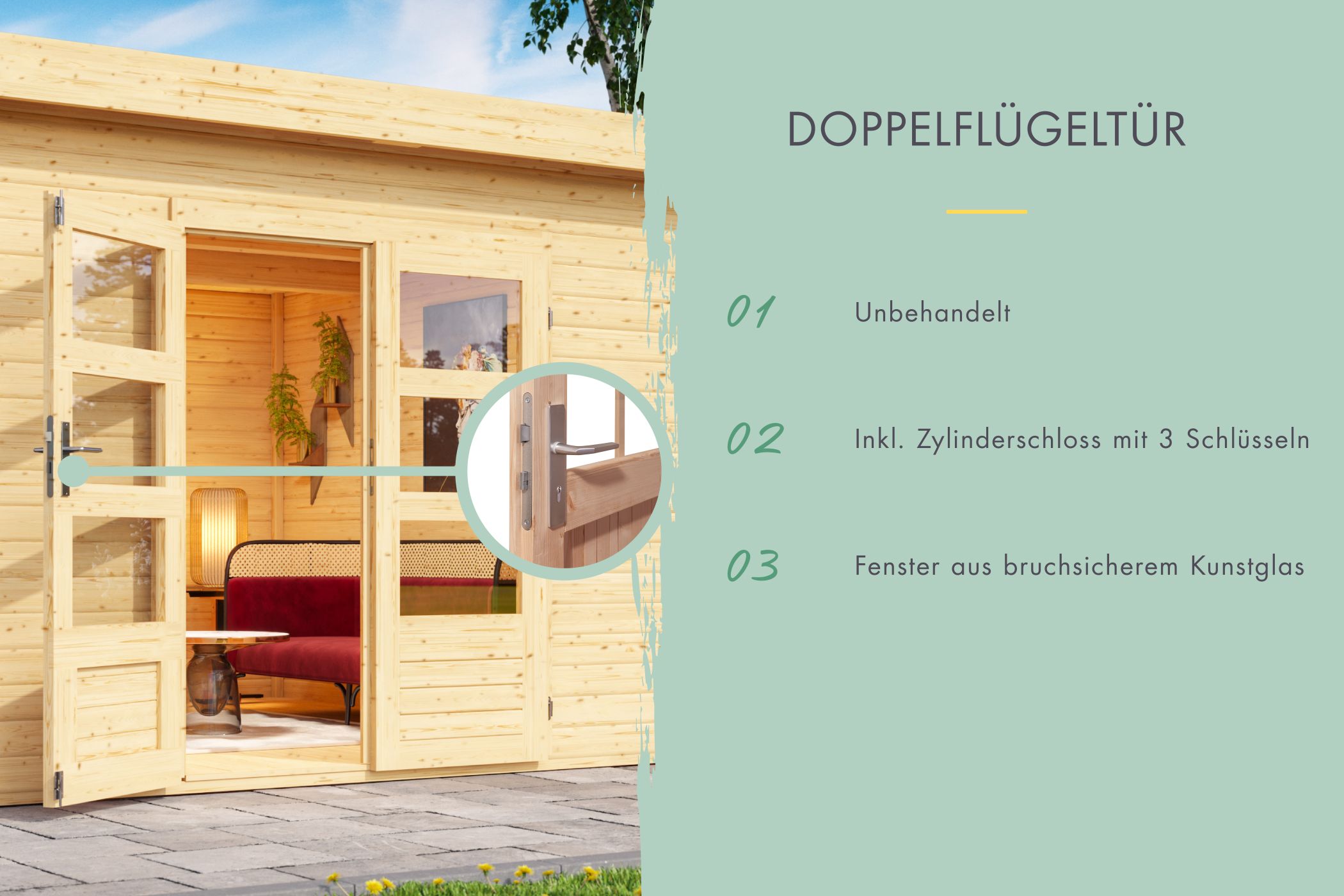

| Lock: | Cylinder lock with 3 keys |
| Snow load: | 125 kg/m² |
| Height: | 202 cm |

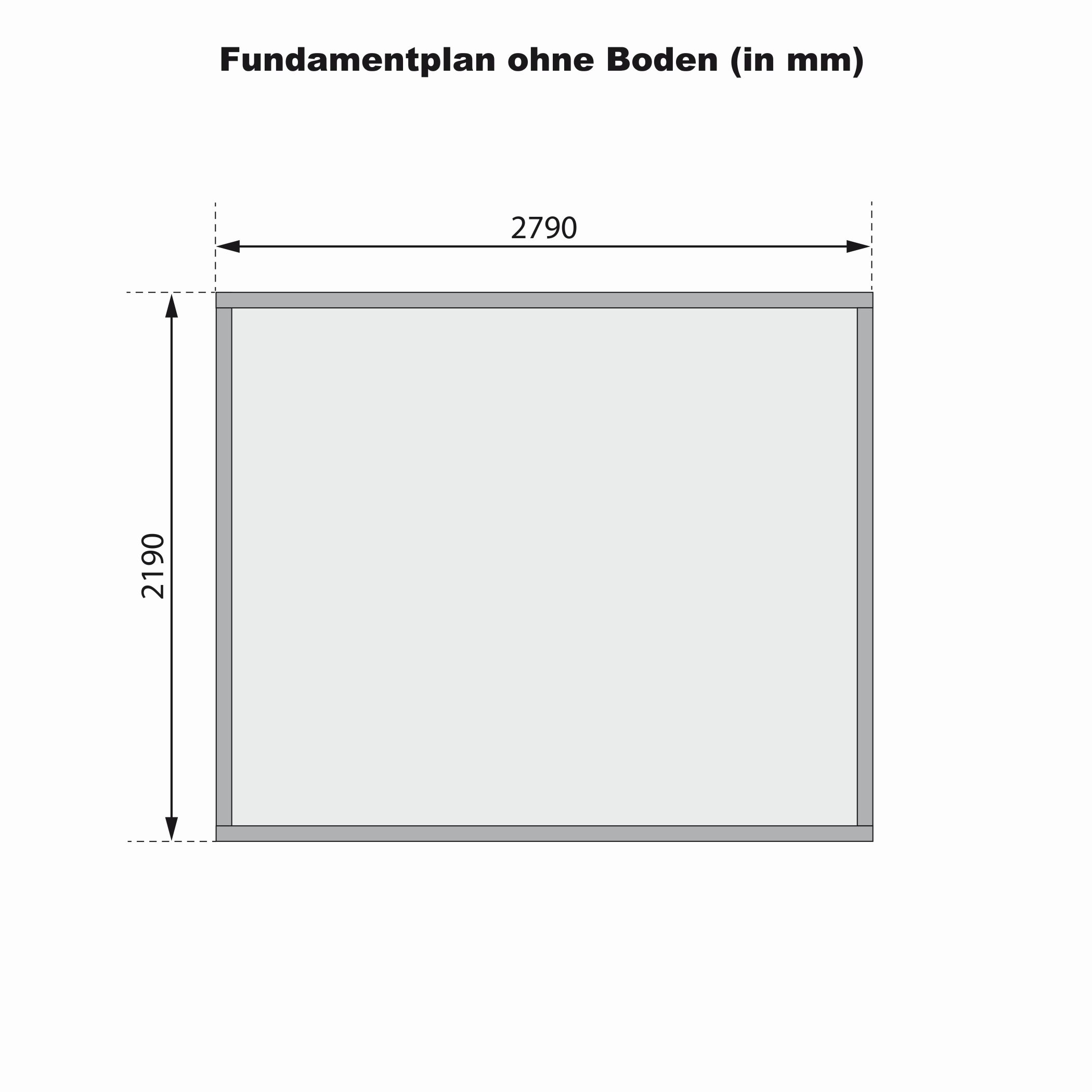

| Width of the base: | 280 cm |
| Depth plinth: | 220 cm |
| Door Width: | 70.5 cm |
| Door height: | 176.5 cm |
| Door pane material: | Art glass |
| Enclosed space: | 12.9 m³ |
| Wall thickness: | 28 mm |
This depends on your area of residence, because the building regulations can differ depending on the state and/or municipality. You can find general information on this in our guide to the garden house building permit. However, only your locally responsible building authority can give you a binding statement.
Yes, absolutely! There are several ways to build a load-bearing and even subsoil. You can find out how to choose the right foundation for your garden house and how the different types differ in our guide.
This depends on which wood colour or variant you have chosen. Use our information article as a guide for natural products, in which we have compiled practical tips for painting the garden shed for you. If you opt for a pre-treated version, you will automatically benefit from our Karibu colour system.
In our special topic area, we summarize interesting facts about garden house care for you. Here you can find out, among other things, how you can optimally prepare your garden house for the winter or paint it properly.
Yes, for some products we provide you with video tutorials. Just take a look at our assembly videos for Karibu garden sheds and saunas to see if your model is there.
